Lithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8A

Brand Name : YHY

Model Number : yhy-12601500

Place of Origin : Guangdong, China (Mainland)

Supply Ability : 450,000 PCS/month

Packaging Details : Brown box+ carton

MOQ : 100

Price : Negotiable

Certification : UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65

Payment Terms : T/T, Western Union,Paypal

Delivery Time : 12-14 workdays after receipt of your oder

Use : Battery

Type : Electric

Socket Standard : EU/AU/UK/US

Input voltage : 100V-240V

Output voltage : 5.8V 7.2V 7.5V 8.4V 9V

Output current : 100ma-1000mA

DC connector Dimession : OD5.5*ID2.1*L10mm

Frequency : 50/60Hz

Contact Now

Lithium ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8A

Details
NO. Items Specification Notes
Input Characteristics
1 Input voltage 100-240V~, 50/60Hz
Min. Input current 0.5A
Output Characteristics
2 Max. Output Voltage As below list
Max. Output Current As below list
Battery Capacity 1000mAh Min
Efficiency 80% Min

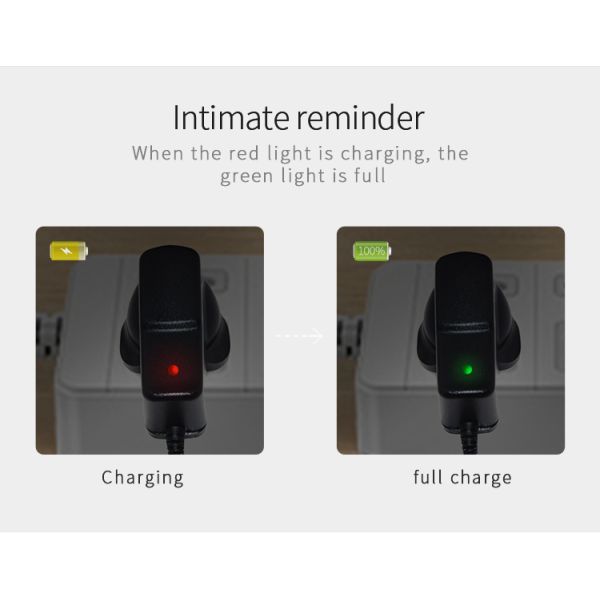

Power Indication LED=Green: Fully charged
LED=Red: In charging
Charging Supervision and Protection Mechanism
3 Over Voltage Protection YES
Output Reverse Protection YES
CC CV YES
Envrionment
4 Operation Temperature 32-140 F
Operation Humidity 20-85%
Storage Temperature 40-80 F
Storage Humidity 10-95%
Mechanical
5 Dimension ---
AC Plug EU US UK AU KR JP CN
Weight 110G
Output Cable 1.2m 2464 24AWG
Connector 5.5x2.1mm (Customizable )
Charge Instruction
1. Make sure your AC supply source is 100-240V and your battery pack match with the battery requirement.
2. Connect the charger to the AC outlet. LED=Green: it means power on and no battery connected.
3. Connect DC output to battery pack terminals. LED turn into red. It means in charging.
4. When LED turns Green, the battery pack is fully charged. You can charge next battery pack or switch off the power.
Notice
1. Make sure your battery voltage match with your charger.
2. Always place the charger in well-ventilated, dry environment and indoor use only.
3. Never charge other type batteries except Li-ION/Polymer.
4. Subject to change without prior notice, please contact us for the latest information.
5. Indoor used only, never expose the charger to water such as rain and splash.
6. Make sure good ventilation is provided when charger operation. Never place the charger near radiator, heat register or similar heat source when in charging.

Output Ratings
Model Output Output Max. Power Max. DOE VI
(V) (A) (W)
YHY-0500YYYY 5 0.1-1 5 √
YHY-0580YYYY 5.8 0.1-1 6 √
YHY-0720YYYY 7.2 0.1-1 7 √
YHY-0750YYYY 7.5 0.1-1 7.5 √
YHY-0840YYYY 8.4 0.1-1 8 √
YHY-0900YYYY 9 0.1-1 9 √

Lithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8A

Lithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8ALithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8ALithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8ALithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8A

Company Information

Lithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8ALithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8ALithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8ALithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8A

Packaging & Shipping

Lithium Ion Battery Charger 5.8V 7.2V 7.5V 8.4V 12.6V 14.8V 16.8V 25.2V 9V 1A 2A 3A 4A 5A 6A 7A 8A

Shipment:
  • The delivery time is strarting from we confirm the payment.
  • In case of delay the delivery,so hope you charge it as soon as possible .
  • Exact lead time is based on your amounts and fact. so you'd better show me your exact qty,not uncertain
  • Some delivery time as follow:

  • Qty

    (pcs)

    Delivery Time

    (working days)

    less than 100

    5-7

    100-800

    7-10

    800-3K

    10-12

    3K-10K

    15-18

    10K-20k

    20-22

    *Data is a reference for buyer, Specification situation will be given to you after asking us.

    Remark

    1.Samples (less than 10pcs) can be provied, lead time with 3days.

    2.Please carefully check all the details before you take a order.

Our Services
  • Your inquiry related to our products or prices will be replied in 24hrs.
  • Well-trained and experienced staffs to answer all your enquires in fluent English
  • OEM&ODM, any your custo mized lightings we can help you to design and put into product.
  • Distributoership are offered for your unique design and some our current models
  • Protection of your sales area, ideas of design and all your private information
